Spool Up

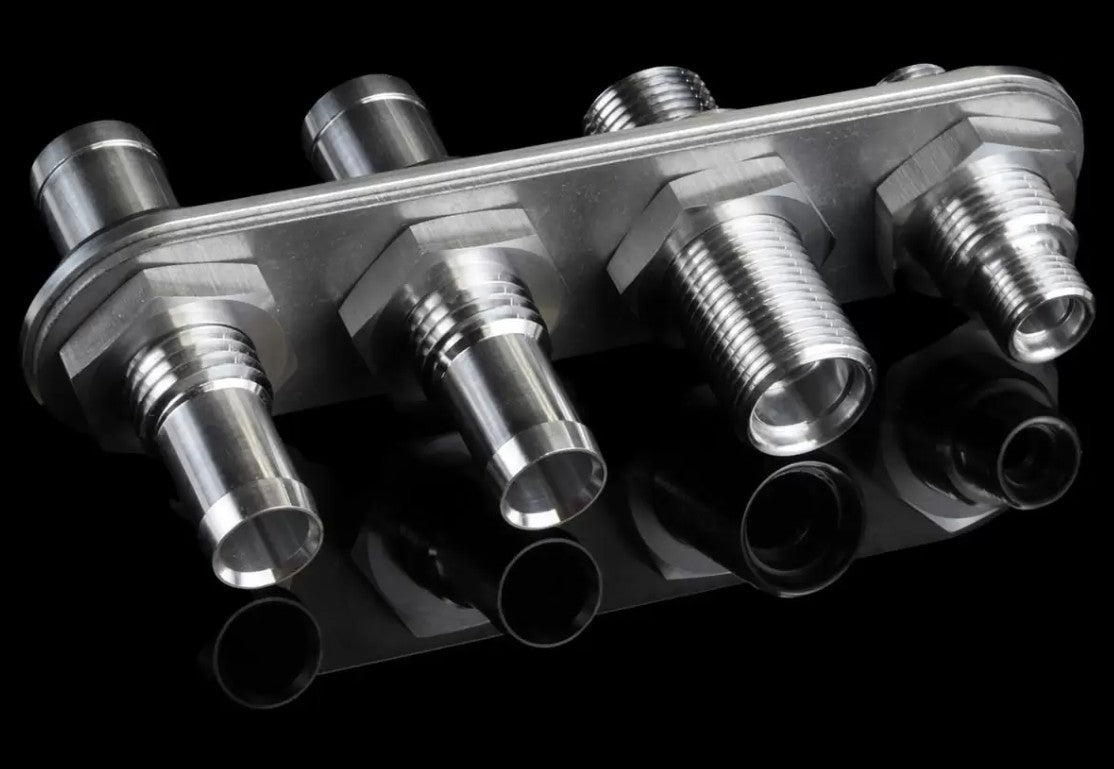

Bulkhead Hose Adapter Quad HVAC 2x 5/8" -6 -10

Bulkhead Hose Adapter Quad HVAC 2x 5/8" -6 -10

Regular price $169.00 AUD
Regular price Sale price $169.00 AUD
Sale Sold out

HVAC Billet Bulkhead Hose Adapter Inline Kit (2x 5/8", -6, -10 AC)

Our high-quality modular bulkhead system offer the perfect solution to transfer fluids through your firewall or bulkhead and are o-ringed to ensure a fully waterproof fit. There are many options available including a number of different bulkhead plates and fittings for Air Conditioning, Push-On Hoses, and AN adapters for Water, Fuel, Oil and Power Steering lines. All options can be configured separately to create all sorts of unique combinations!

The lock plates are designed with a hexagonal cut out that interlocks with the bulkhead plates preventing them from‚rotating when tightening the nut on the reverse side. These units are fully sealed with O-rings front and back to ensure a watertight seal, no sealant or gaskets required. On the reverse side is a load spreader plate to ensure that the bulkhead O-ring has consistent pressure applied allowing fitment on thin bulkhead panels that may not have enough strength to offer a consistent seal all around. All edges are chamfered and the back plate is rumbled to help prevent edges damaging or cracking paint.

Specification Imperial & Other Metric
Plate Width 6.61" 168 mm
Plate Height 1.65" 42 mm
Hole Centres 1.65" 42 mm
Max Panel Thickness 0.55" 14 mm
Hole Size Req'd Ø 0.9" Ø 23 mm
Hose Adapter Ø 5/8" Ø 16 mm
-6 AC Adapter 5/8"-18 O-Ring Male
-10 AC Adapter 7/8"-14 O-Ring Male
Refrigerant Compatibility All Refrigerants
Material 6061-T6 Aluminium
Finish RAW
Manufacturer T7Design Ltd
Kit Part Number 91F-BE9-FF9
Assembly Diagram
Bulkhead

Balloon Number Item
1 Bulkhead Fittings
2 Bulkhead Fitting O-Rings
3 Billet Lock Plate
4 Bulkhead Plate O-Ring
5 Bulkhead / Firewall
6 Aluminium Backing Plate
7 Aluminium Locknuts

Notes: The backing plate (No.6) is a load spreader to fully sandwich the bulkhead plate o-ring against the bulkhead/firewall which will ensure a fully watertight seal. This allows installation against thin or flimsy bulkheads that may not otherwise have enough strength to ensure consistent pressure is applied.

Item no.1, 3 & 6 in the diagram are representative and many different options of hose fitting & lock plates are available.

attention
ATTENTION
  • Please double check that you are ordering the correct diameter for your application.
