T7Design K20 K24 Timing Chain Tensioner Cover - Oil Drain (Black)

T7Design K20 K24 Timing Chain Tensioner Cover - Oil Drain (Black)

Regular price $149.00 AUD
Regular price Sale price $149.00 AUD
Sale Sold out

T7Design K20 K24 Timing Chain Tensioner Cover - Oil Drain

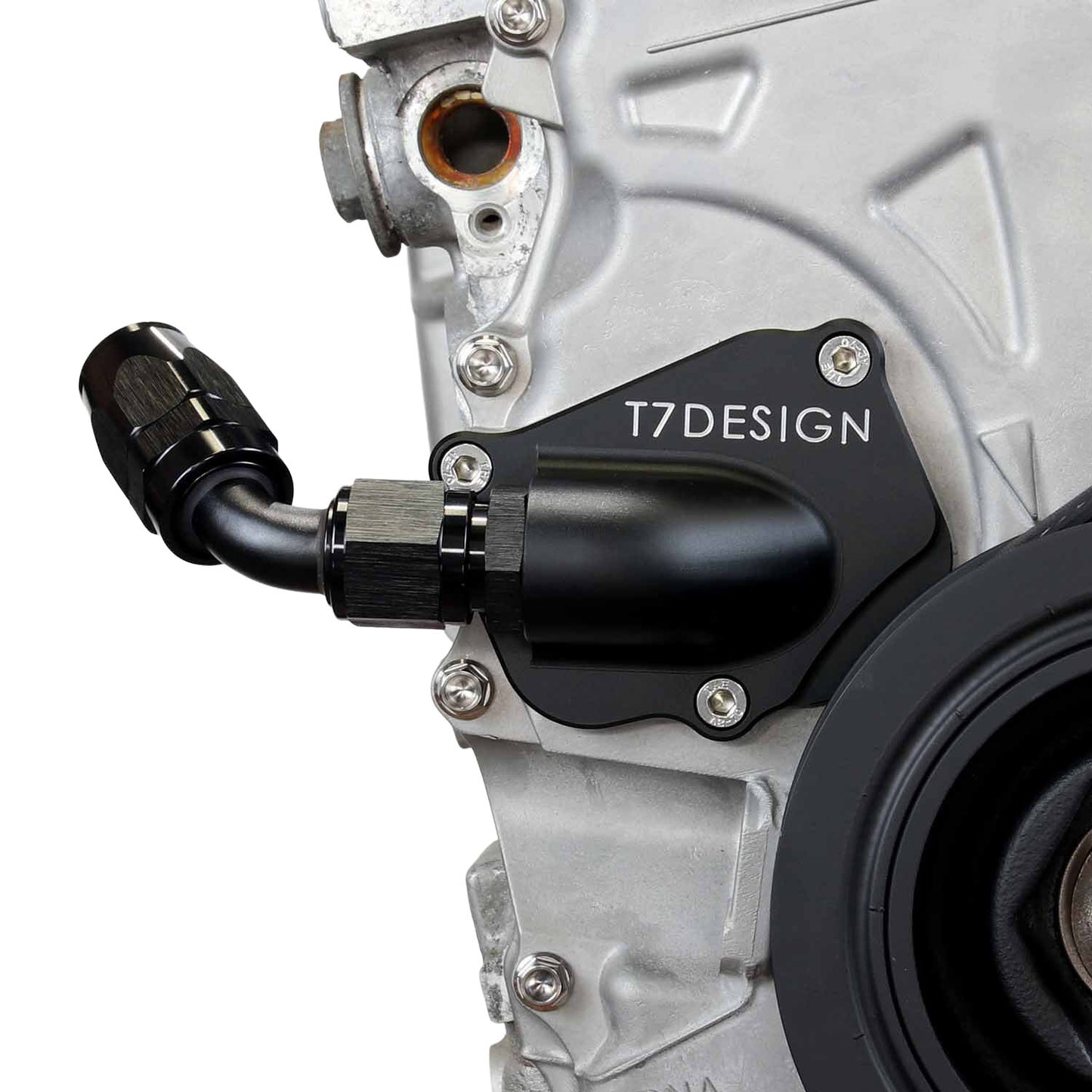

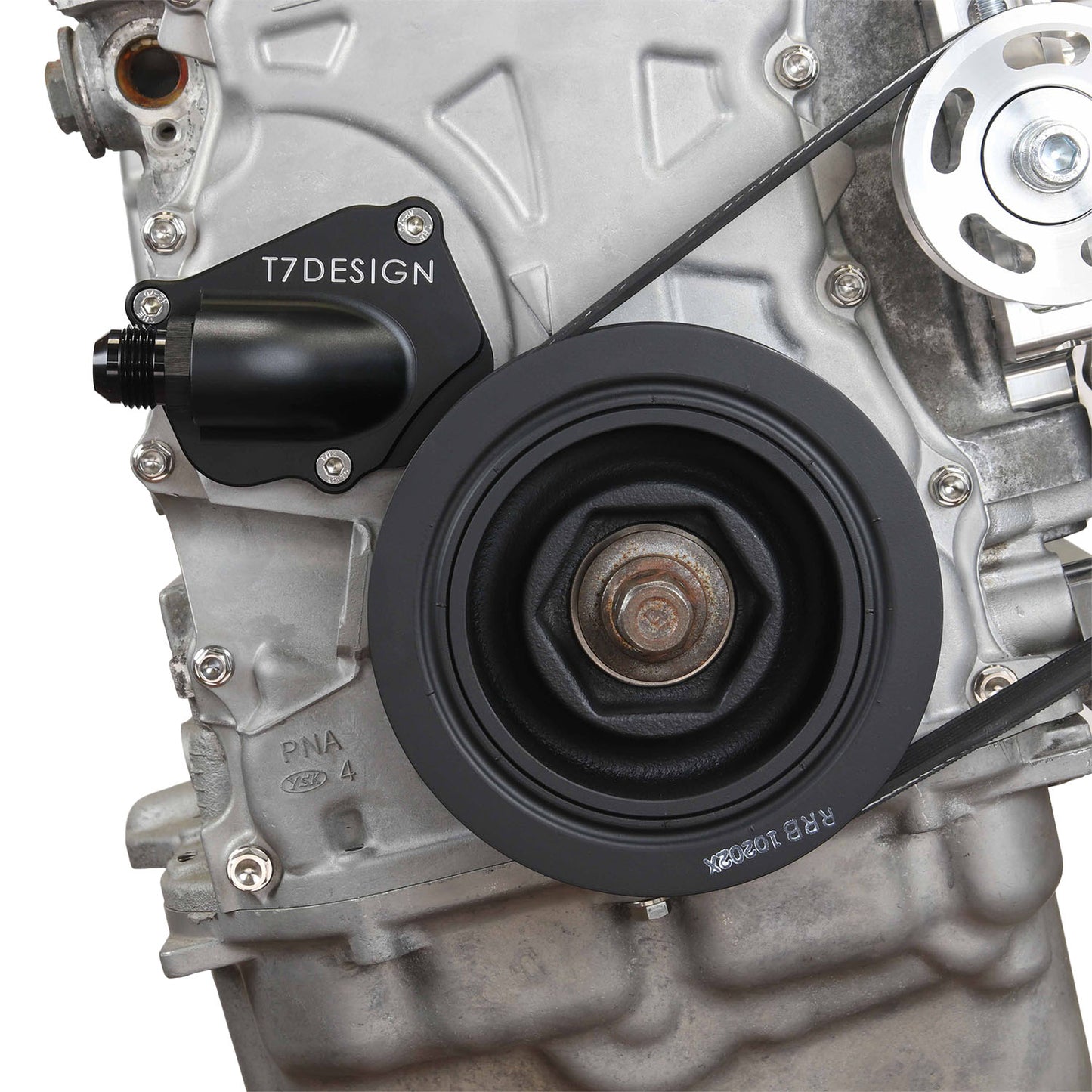

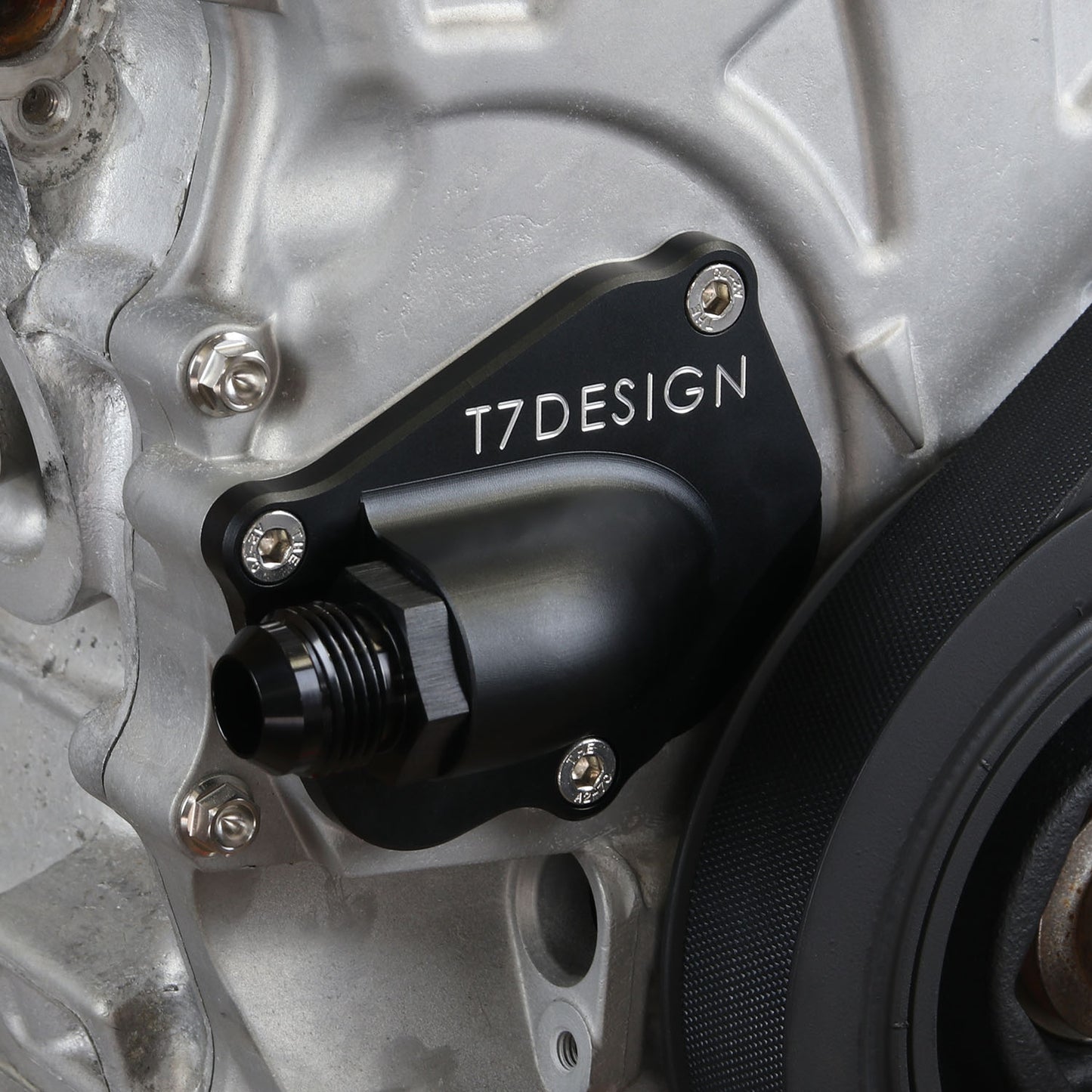

K20/K24 Billet Timing Chain Tensioner Cover with AN10 Turbo Oil Drain - Black

Our billet Timing Chain Tensioner Cover with integrated Turbo Oil Drain offers a neat and effective way to integrate an oil return and ultimately saving the hassle of removing and modifying the sump / oil pan. The billet tensioner oil drain incorporates an ORB10 female thread and is supplied with an AN10 to ORB10 Male/Male adapter to allow the use of standard AN10 hose and fittings. An integrated O-Ring is used to seal against the timing chain cover allowing easy removal to check the timing chain tensioner periodically for wear and tear. Our low-profile design requires only 34mm of clearance from the chain cover mounting face ensuring compatibility with a wide range of vehicles and engine swaps.

The design process starts with an ultra-high-quality digitised copy of our cam chain cover using our in-house metrology grade laser scanning equipment, this impressive piece of technology allows us to design parts to OEM level quality of fit and finish.

For log or front mount turbo's only, manifolds with turbo's positioned over the gearbox are too far away from the front of the engine for this style of oil drain to work effectively.

Will fit all versions of the K20 and K24 engines apart from K24Z.

Colour: Black

Product Code: CE0-FB3-A6A

WEIGHT: 200g
