Tank Capacity – 1.0L
Usable Volume – 0.7L
2 x AN-8 ORB, AN-10 Drain with Tap, AN-12 Breather, Baffled
For AN-10 breather line applications,
Height including breather and drain tap: 279mm
Height not including breather and drain tap: 200mm
Height of tank body only: 160mm
Width: 80mm
Depth: 80mm
Kit Includes

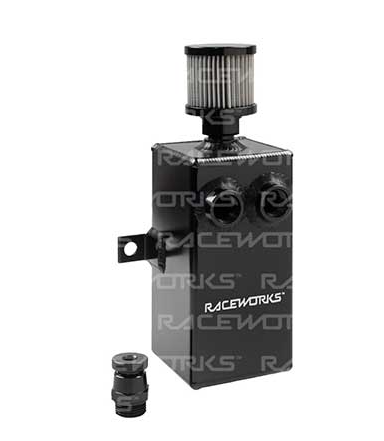

1x 1L Baffled Alloy Catch Can as pictured with Breather filter and drain fitting with 2 x inputs
2x -10 Fittings

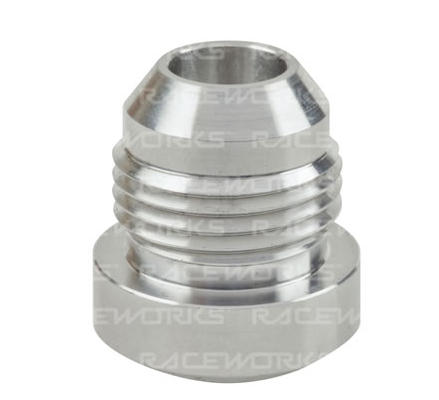

2x Weld On Alloy Fittings

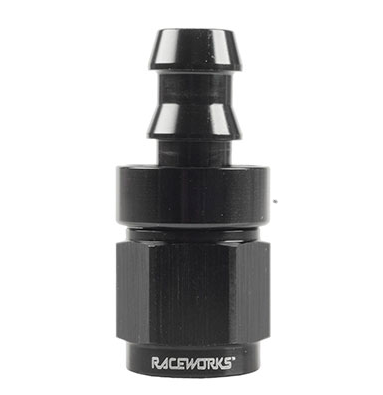

2x -10 Alloy Push Lock Straight Hose Ends

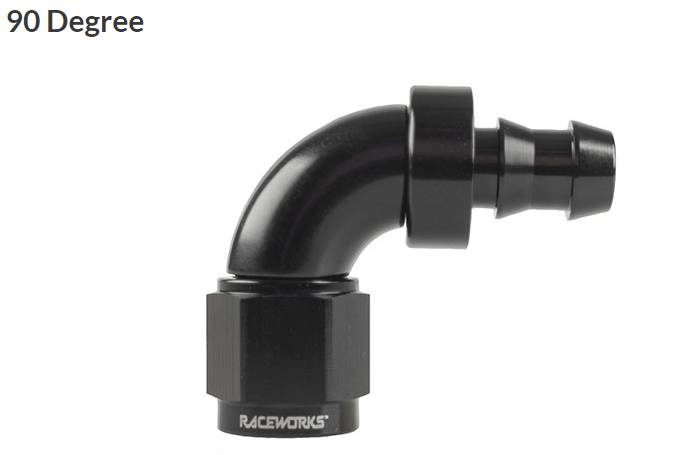

4x -10 Alloy Push Lock 90 Degree Hose Ends

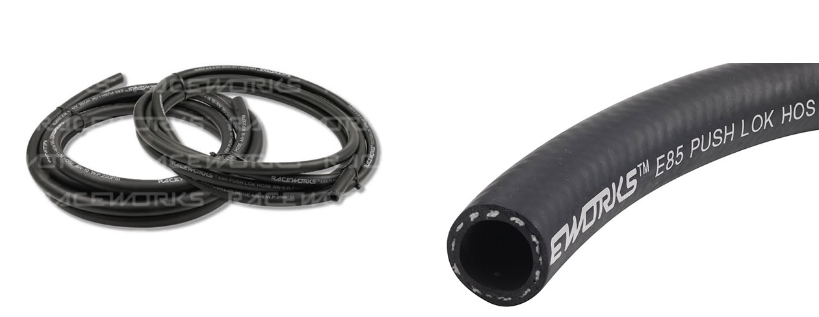

3m of Raceworks 400 Series -10 Black Rubber Push Lock hose
