T7Design RWD K20 Water Neck Outlet (Black) - SUITS REAR WHEEL DRIVE

T7Design RWD K20 Water Neck Outlet (Black) - SUITS REAR WHEEL DRIVE

Regular price $215.00 AUD
Regular price Sale price $215.00 AUD
Sale Sold out

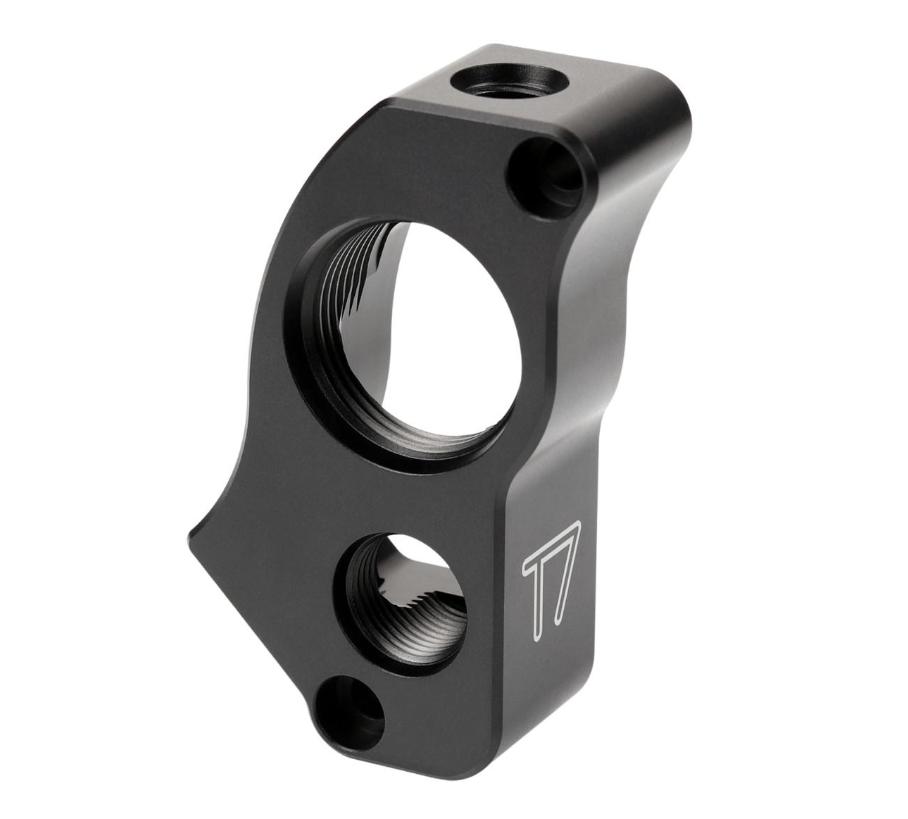

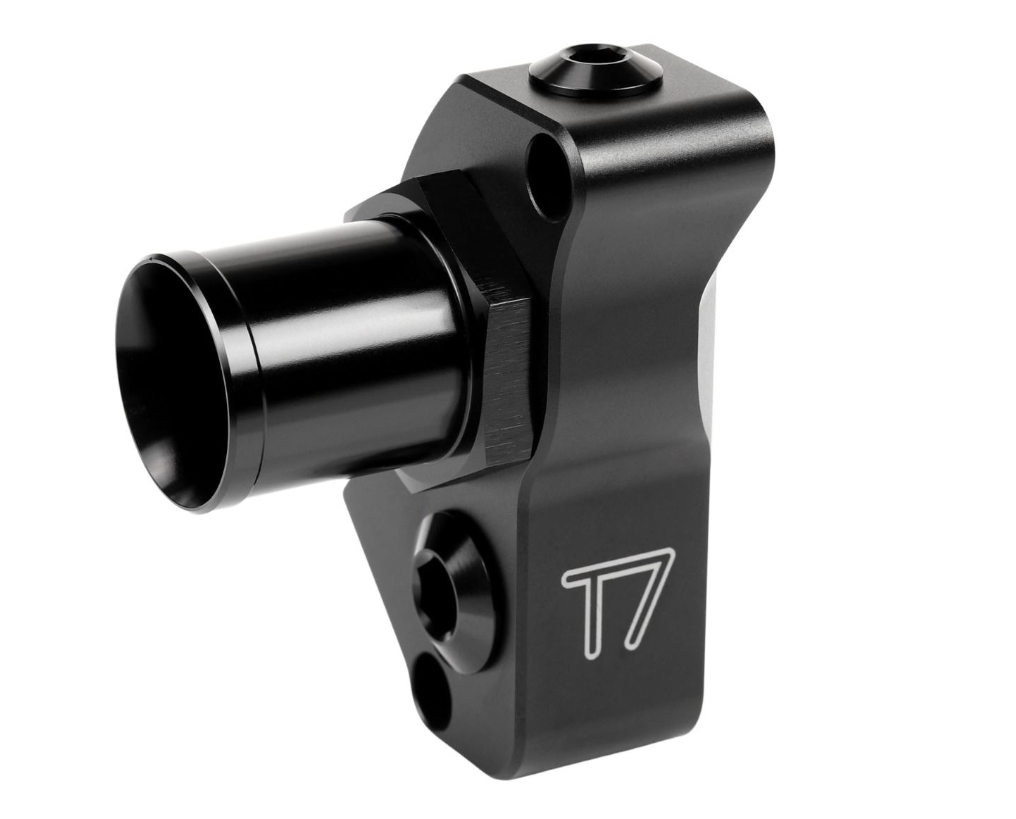

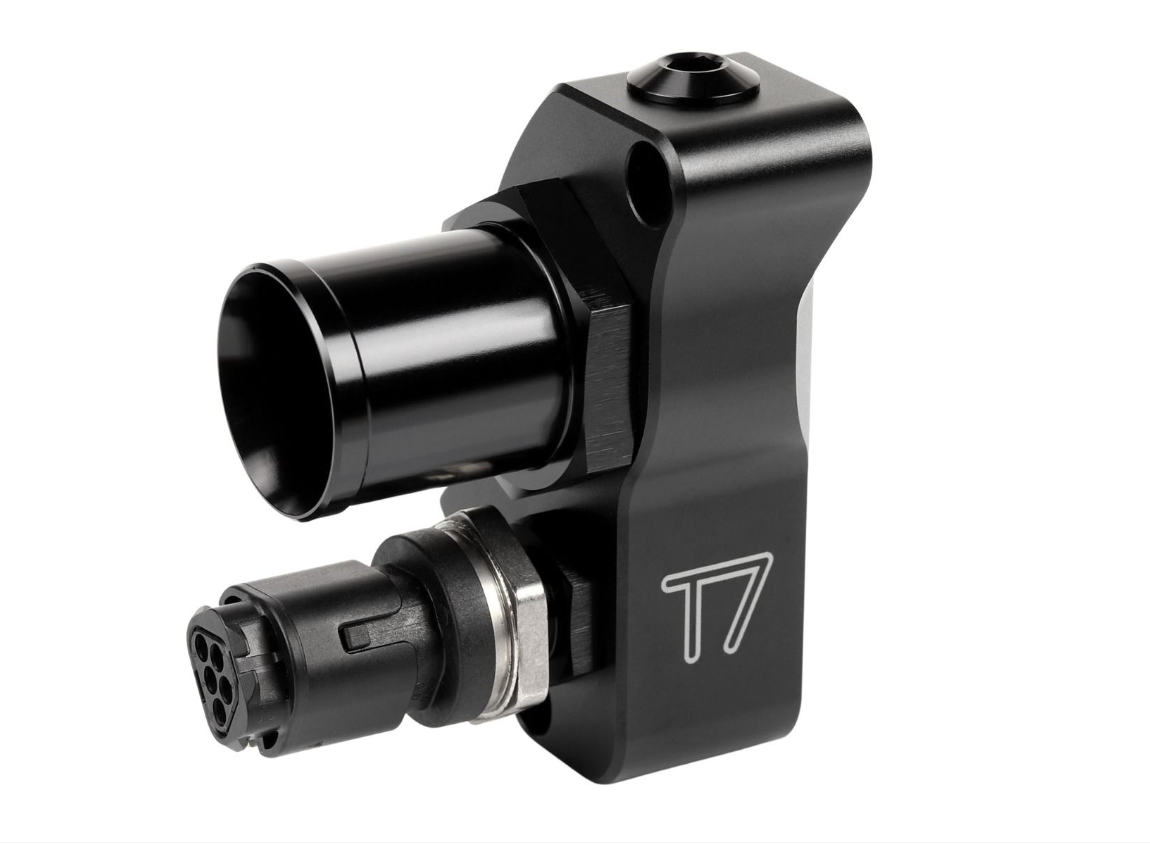

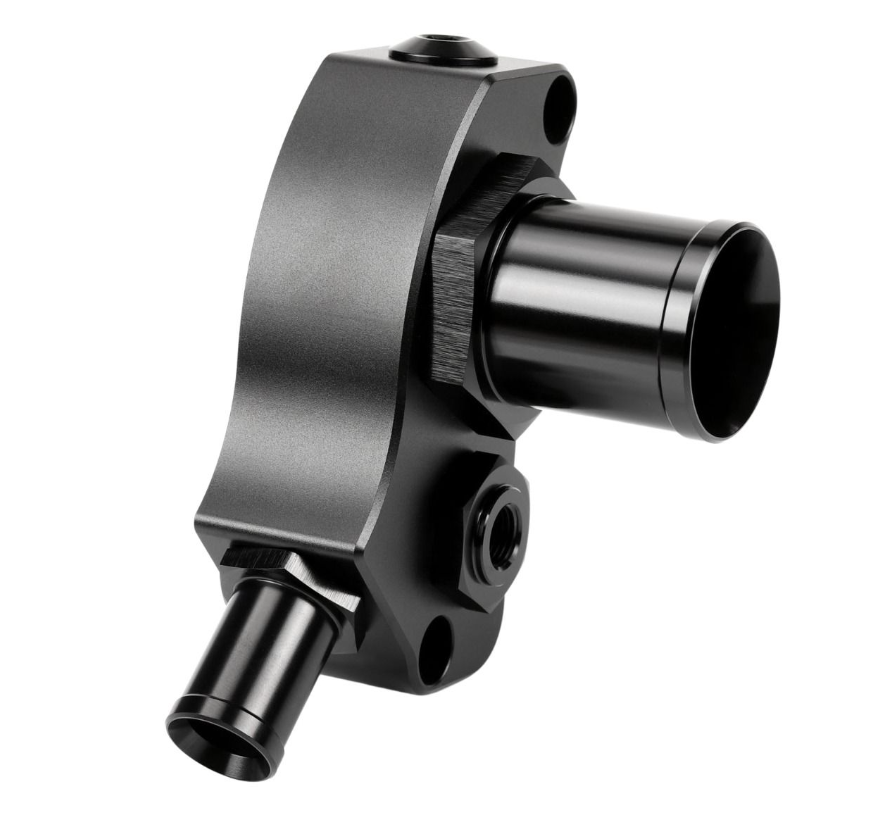

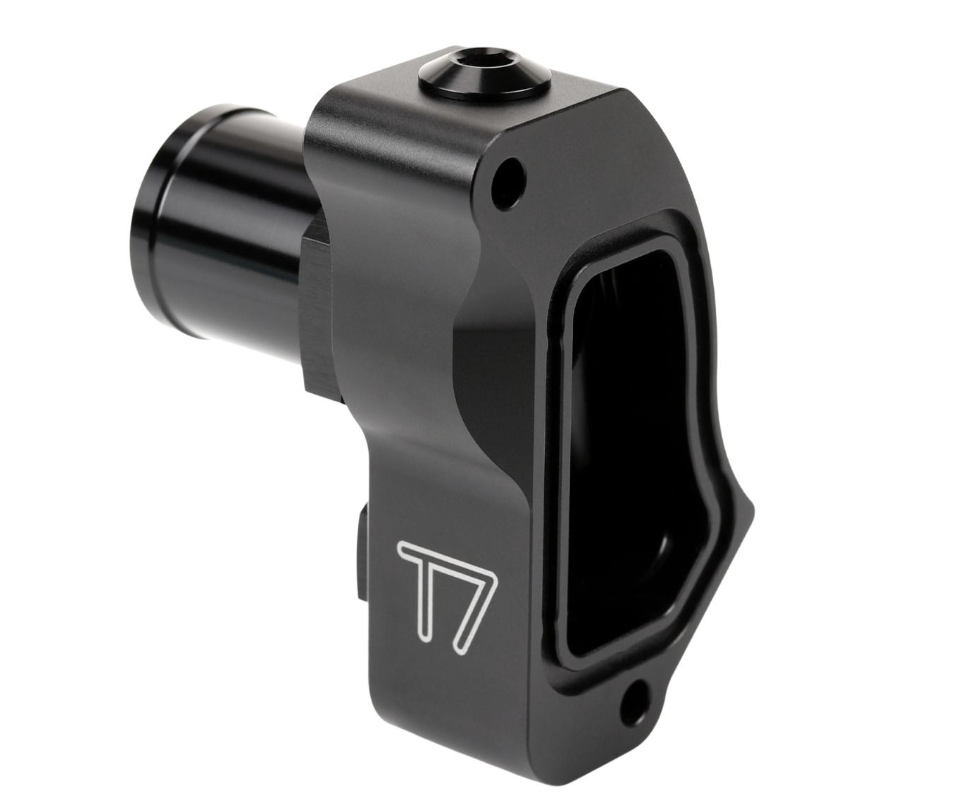

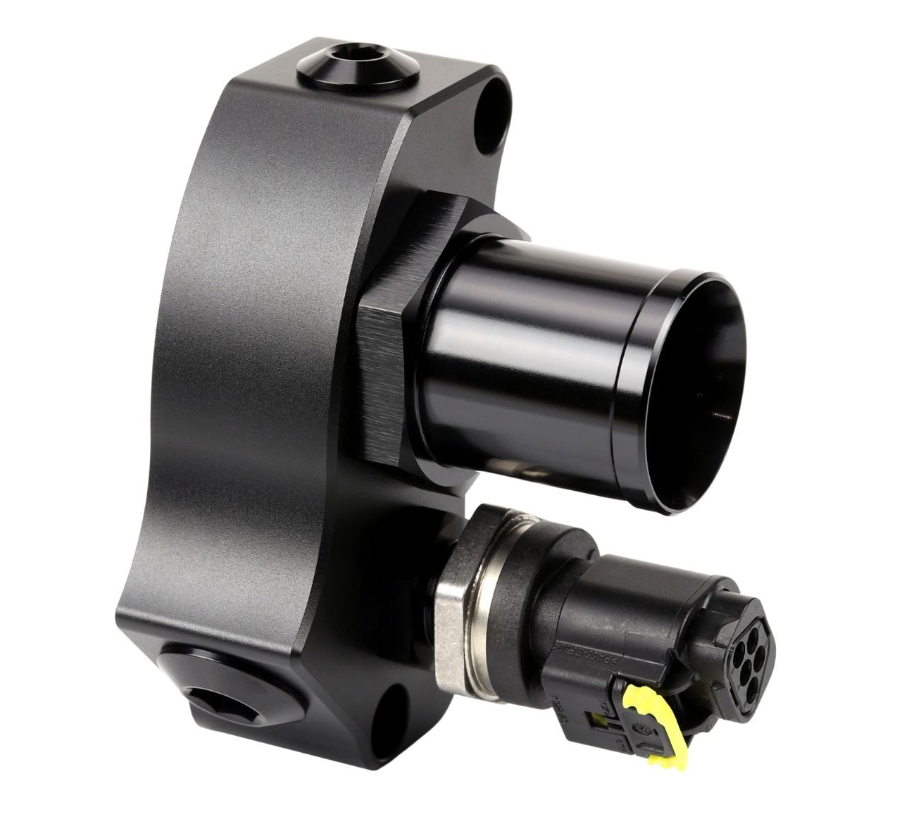

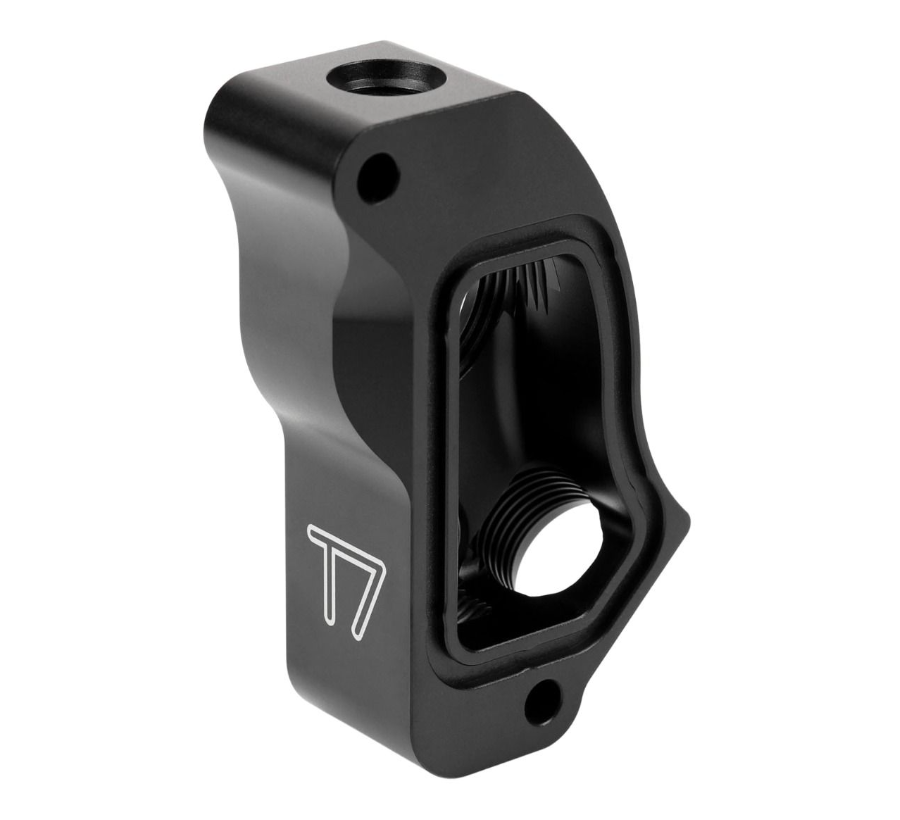

Honda K20 Rear Wheel Drive (RWD) Water Outlet Neck

The T7Design Honda K20 Rear Wheel Drive (RWD) Water Outlet Neck offers the end user the ability to fit the K20 engine in any rear wheel drive application where the engine is mounted longitudinally. Designed for maximum bulkhead clearance and many ports for options to be repurposed, such as a turbo water feed/return or heater port.

We have included an ORB16 threaded outlet to allow the user to run either a 32mm hose adapter, or an AN16 fitting, the thermostat bypass outlet is an ORB08 and can be plugged if not required (for example electric water pump conversions). On the top there is an ORB06 to allow easy bleeding of the K20 engine, or it could be used to route an air bleed hose to a header tank. Underneath the top rad hose outlet we have included a ORB08 port for the installation of many fittings, adapters or sensors.

FEATURES & BENEFITS



  • ORB16: For top radiator hose, OEM 32mm Hose barb or AN16 options available.
  • ORB08: Thermostat bypass hose, ORB08 to Barb or ORB08 blanking plug available.
  • ORB06: Air bleed, ORB06 blanking plug included.
  • ORB08: For temp sensor, blanking plug included if not used.
  • Fits the following engine models: K20A, K20A2, K20A3, K20Z1 & K24A1

Specification
Construction Billet 6061-T6 Aluminium
Finish Hard Anodised Black
Manufacturer T7Design
attention
ATTENTION
  • This product will only fit rear wheel drive models only.
  • Fits the following engine models: K20A, K20A2, K20A3, K20Z1 & K24A
