3 Inch Universal Carbon Top BMC Air Filter

Description

BMC conical filters for direct air intake can be installed on most engine types by removing the factory airbox.

Manufactured using BMC’s signature red rubber, the intake connection is highly resistant to engine heat and stress while maintaining its shape under high temperatures.

The special filtration mesh supports applications up to 700HP without filter deformation.

Available Versions:

• SA (Single Air) with lateral airflow
• TW (Twin Air) with central and lateral airflow

Specifications

• SKU: FBTW76-140
• Filter Type: Twin Air
• Filter Material: Oiled Cotton Gauze
• Top Finish: Carbon
• Flange Type: Centred
• Flange Angle: 0°
• Washable: Yes
• Warranty: 2 Years Limited
• EAN: 8032872869593

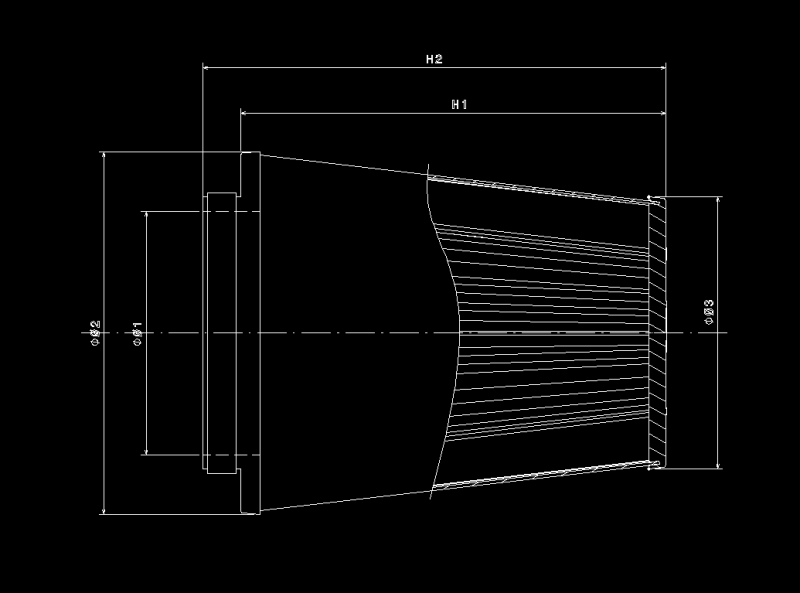

Dimensions

• Flanges: 1
• Flange Length: 43mm
• Flange Inside Diameter Ø1: 76mm
• Base Outside Diameter Ø2: 151mm
• Height H2: 186mm
• Height H1: 143mm
• Top Outside Diameter Ø3: 134mm

Features

• Direct induction performance filter
• Heat-resistant rubber intake connection
• High airflow Twin Air configuration
• Supports applications up to 700HP
• Resistant to deformation under heat and stress
• Washable and reusable design
