Single Air Intake Polyurethane Pod Filter FSA76-140
Flanges
1

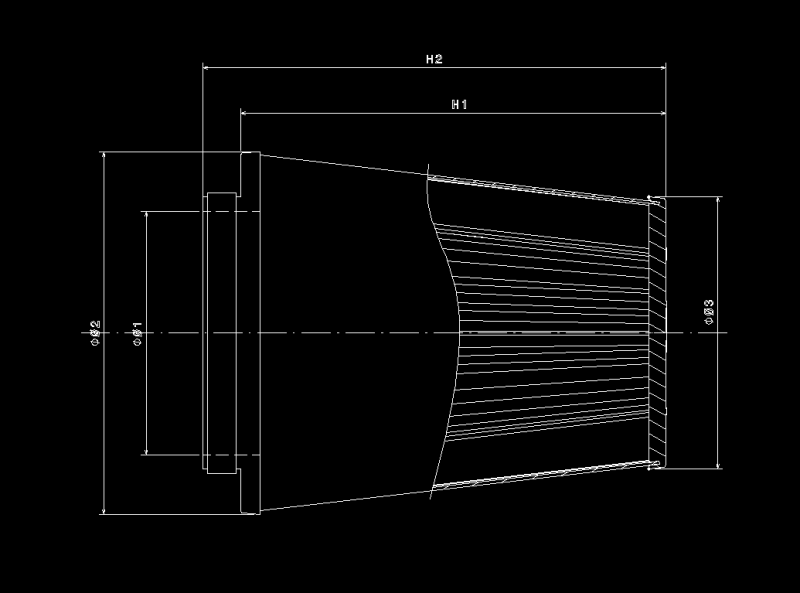

Flange Length (mm)
43
Flange Inside Diameter Ø1 (mm)
76
Base Outside Diameter Ø2 (mm)
150
Height - H2 (mm)
183
Height - H1 (mm)
140
Top Outside Diameter Ø3 (mm)
134
Top material - Finish
Polyurethane
BMC conical filters for direct air intake can be installed on most types of engine by removing the original airbox. BMC direct induction conical filters are manufactured using a characteristic red rubber that allows the connection of the intake to be particularly resistant to both engine stress and heat without suffering from deformations caused by the high temperature. The special filtration mesh allows the production of filters with a power up to 700 HP without presenting problems of filter deformation. BMC conical filters are available in two versions: SA (Single Air) with simple lateral air flow - available in carbon top, metal top and plastic top versions; TW (Twin Air) with central and lateral air flow - available in metal top and plastic top versions.
