Spool Up

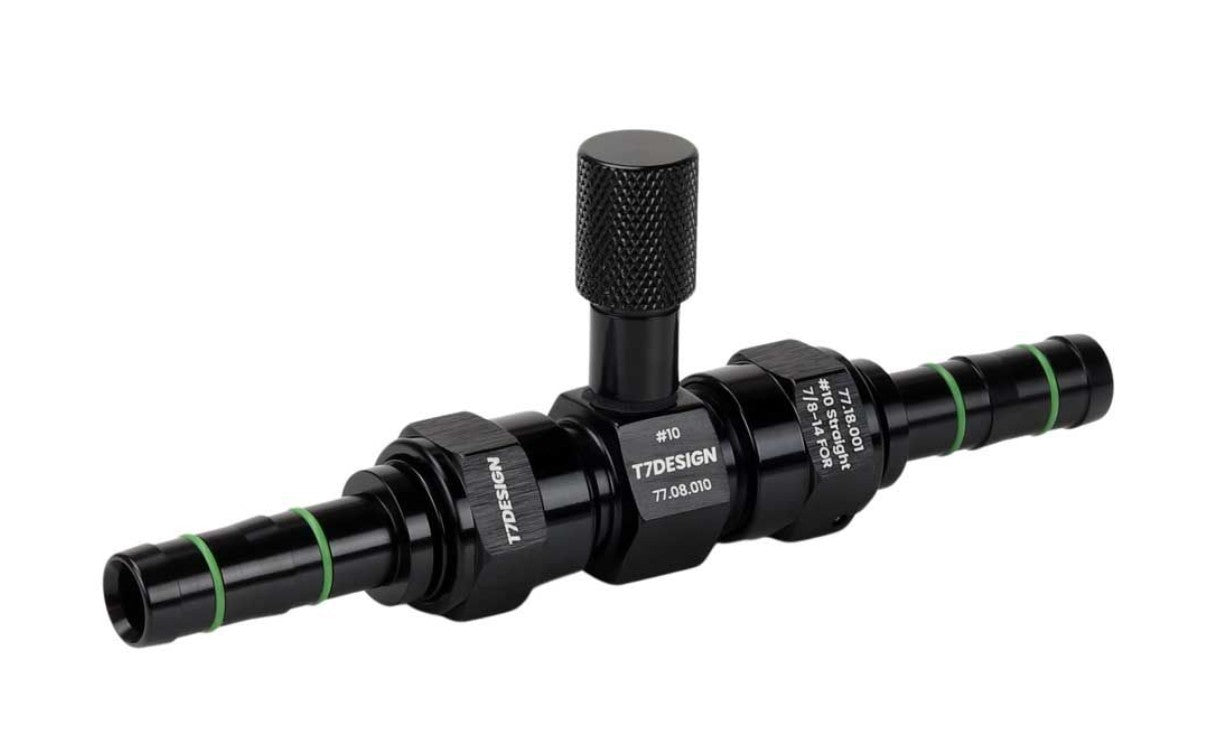

T7Design -10 Inline Splicer Charge Port LP
T7Design -10 Inline Splicer Charge Port LP
Regular price
$120.00 AUD
Regular price
Sale price
$120.00 AUD
Unit price
/
per
Couldn't load pickup availability
Tough, lightweight, and with a modern, elegant look, our A/C hose ends have been engineered to offer the best performance for a wide variety of applications from motorsport to commercial use. The system is very quick and convenient to assemble, only requiring the use of 'Clic' pliers, thus eliminating the need for a hydraulic crimping machine.
- Lightweight aluminium construction offers approx. 50-65% weight reduction over Steel equivalent.
- Anodised finish for superior corrosion protection.
- Threaded ends allow for installation of angled fittings to give more flexibility with installation and hose routing.
- High quality CNC machined cap with knurling included.
- High-flow design reduces flow restriction and increases system efficiency.
Please Note: Pilot O-Rings, Clips & Cages etc are NOT included and are available to purchase separately.
Please Note: 'Clic' pliers are the only tool required for assembly.
Specification | Metric | Imperial & Other |
Minimum Temperature | -40 °C | -40 °F |
Maximum Temperature | 135 °C | 275 °F |
Fitting Type | Inline Charge Port - Low Pressure Side | |
To Suit Hose Size | -10 | |
Material | 6061-T6 Aluminium | |
Finish | Anodised Black | |
Conforms To | Exceeds SAE J2064 Performance | |
Refrigerant Compatibility | R-12, R-22, R-134a, R-502, MP39, MP66, R404a | |
Lubricant Compatibility | Mineral Oil, PAG, Ester Oil | |
Hose Compatibility | GH001 Multi-Refrigerant Hose | |
Our Part Number | 4B7-729-9F4 |
Kit Contents
Quantity | Item | Part Number |
1x | Charge Port | 77.08.010 |
2x | Straight Fittings | 77.18.001 |
2x | AC -10 O-Rings | 237-AD5-099 |

ATTENTION
- The T7Design AC hose fittings have been engineered to work EXCLUSIVELY with Eaton GH001 series hose.
- Pilot O-Rings, Clips & Cages etc are NOT included and are available to buy separately.
- Please double check that you are ordering the correct diameter for your application prior to checkout.
- 'Clic' pliers are the only tool required for assembly.
