Walbro / TI Automotive 540LPH E85 Fuel Pump

Walbro / TI Automotive 540LPH E85 Fuel Pump

Regular price $280.00 AUD
Regular price Sale price $280.00 AUD
Sale Sold out

TI Automotive Aka Walbro 540lph @ 3 Bar, Internal Check Valve, 9a @ 3 Bar Current Draw 38.5mm Diameter E85 Compatible 10mm Outlet.

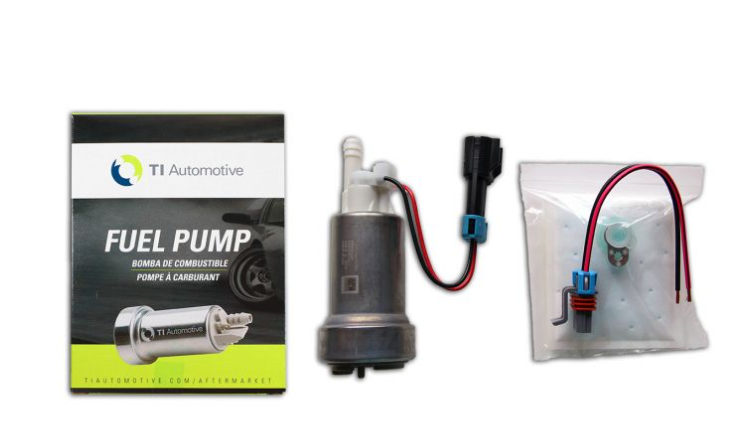

Comes complete with installation kit including fuel pump, wire harness, and pickup filter. Genuine hologrammed, locally delivered fuel pump sourced directly from the Australian distributor for Walbro / TI Automotive.

The Walbro 540lph fuel pump flows enough fuel to support 900hp and is ideal for very high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 or Walbro 460 fuel pump won’t flow enough.  If you are under 500hp, see our other items for the Walbro GSS341 / GSS342 255 lph pumps.

Suits the following vehicles (along with many others) with minor cradle mods:

  • BA, BF, FG, FG X Falcon & XR6 Turbo
  • VT, VX, VY, VZ, VE, VF Commodore
  • Subaru WRX
  • Nissan Skyline, Silvia, 180sx
  • and many more.


  • Common names: Walbro 535, Walbro 540 High Pressure, Hellcat
  • Flow rate: 540lph @ 13.5v (3 bar)
  • E85 Compatible: Yes
  • Max current draw: 25A (Make sure your wiring can handle this beast!)
  • Body Diameter: 39mm / 50mm
  • Length: 131mm
  • Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
  • Pressure Relief: 112psi (see other items for 112psi high pressure version)
  • Check Valve: No (see other items for 525 Hellcat pump with check valve)

Walbro is now known as TI Automotive

For decades, Walbro automotive fuel pumps have been manufactured by TI Automotive. As of late 2019, these same pumps are now branded with the TI Automotive name, carrying a legacy for more than 60 years of manufacturing the most popular drop-in fuel pumps, with the same performance, quality and reliability that you have come to know and expect.

TI Automotive products are manufactured in their plant in Caro, Michigan in the USA. We source our pumps from a registered Australian wholesaler, delivered them with holograms for authenticity and supply them with genuine fitting kits only.

Walbro/TI Automotive Part Number: F90000295

Also Known As: EFP-622
