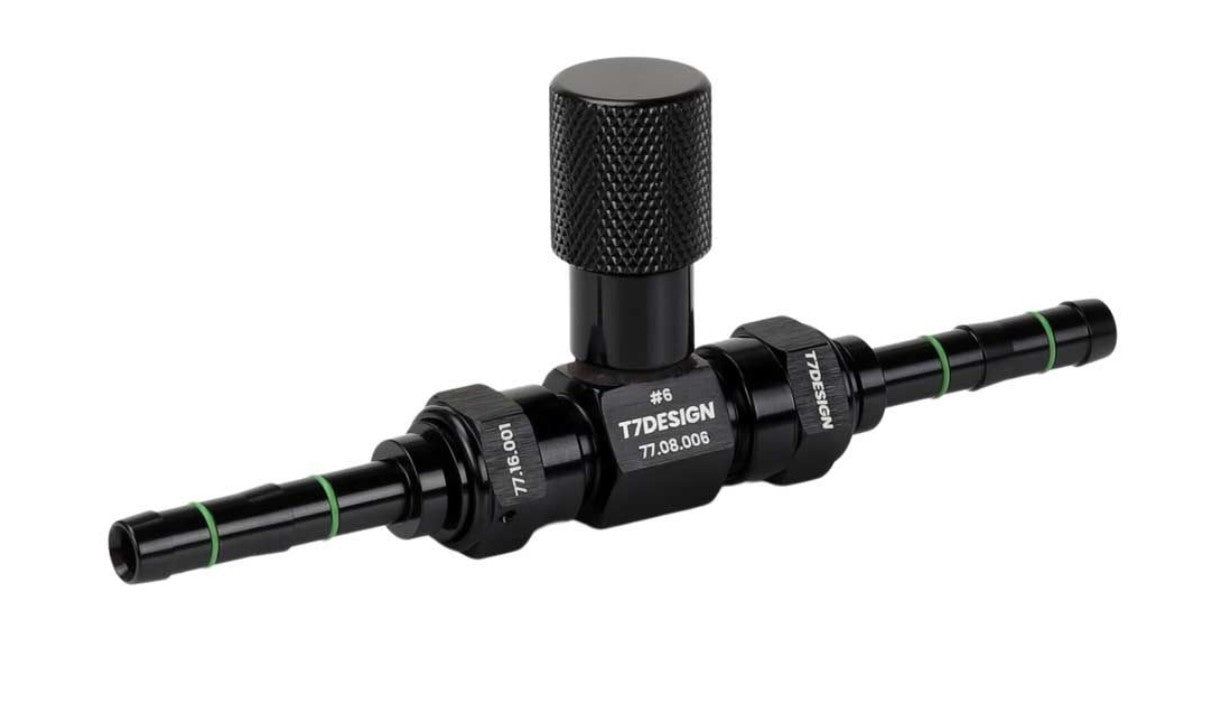

T7Design -6 Inline Splicer Charge Port HP

T7Design -6 Inline Splicer Charge Port HP

Regular price $103.00 AUD
Regular price Sale price $103.00 AUD
Sale Sold out

Tough, lightweight, and with a modern, elegant look, our A/C hose ends have been engineered to offer the best performance for a wide variety of applications from motorsport to commercial use. The system is very quick and convenient to assemble, only requiring the use of 'Clic' pliers, thus eliminating the need for a hydraulic crimping machine.

  • Lightweight aluminium construction offers approx. 50-65% weight reduction over Steel equivalent.
  • Anodised finish for superior corrosion protection.
  • Threaded ends allow for installation of angled fittings to give more flexibility with installation and hose routing.
  • High quality CNC machined cap with knurling included.
  • High-flow design reduces flow restriction and increases system efficiency.

Please Note: Pilot O-Rings, Clips & Cages etc are NOT included and are available to purchase separately.

Please Note: 'Clic' pliers are the only tool required for assembly.


Specification Metric Imperial & Other
Minimum Temperature -40 °C -40 °F
Maximum Temperature 135 °C 275 °F
Fitting Type Inline Charge Port - High Pressure Side
To Suit Hose Size -6
Material 6061-T6 Aluminium
Finish Anodised Black
Conforms To Exceeds SAE J2064 Performance
Refrigerant Compatibility R-12, R-22, R-134a, R-502, MP39, MP66, R404a
Lubricant Compatibility Mineral Oil, PAG, Ester Oil
Hose Compatibility GH001 Multi-Refrigerant Hose
Our Part Number FFA-DAB-70D
Kit Contents
Quantity Item Part Number
1x Charge Port 77.08.006
2x Straight Fittings 77.16.001
2x AC -6 O-Rings 30C-69F-66E
attention
ATTENTION
  • The T7Design AC hose fittings have been engineered to work EXCLUSIVELY with Eaton GH001 series hose.
  • Pilot O-Rings, Clips & Cages etc are NOT included and are available to buy separately.
  • Please double check that you are ordering the correct diameter for your application prior to checkout.
  • 'Clic' pliers are the only tool required for assembly.
