T7Design K20/K24 Thermostatic Oil Cooler Sandwich Plate

56B-16C-B85 - Honda K20/K24 Thermostatic Sandwich Plate AN10 (82-92c)

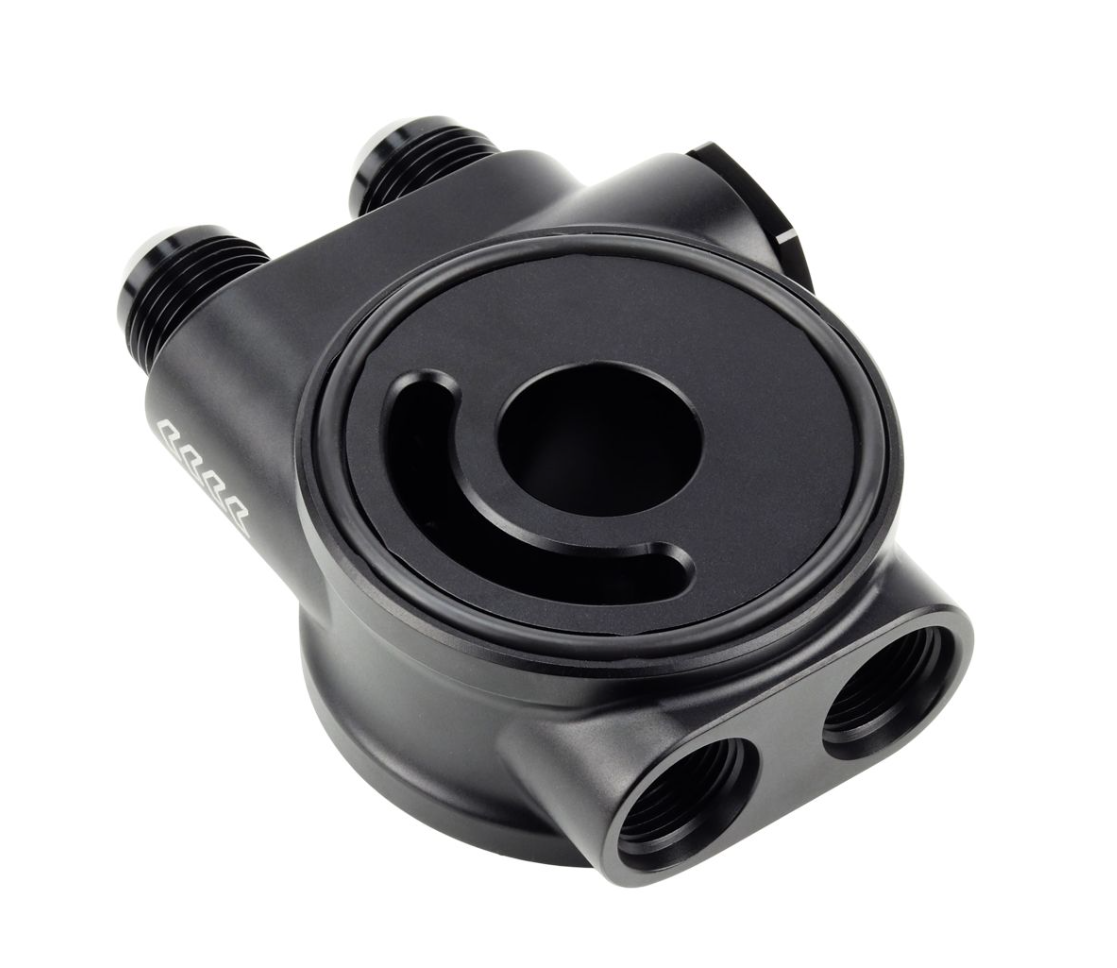

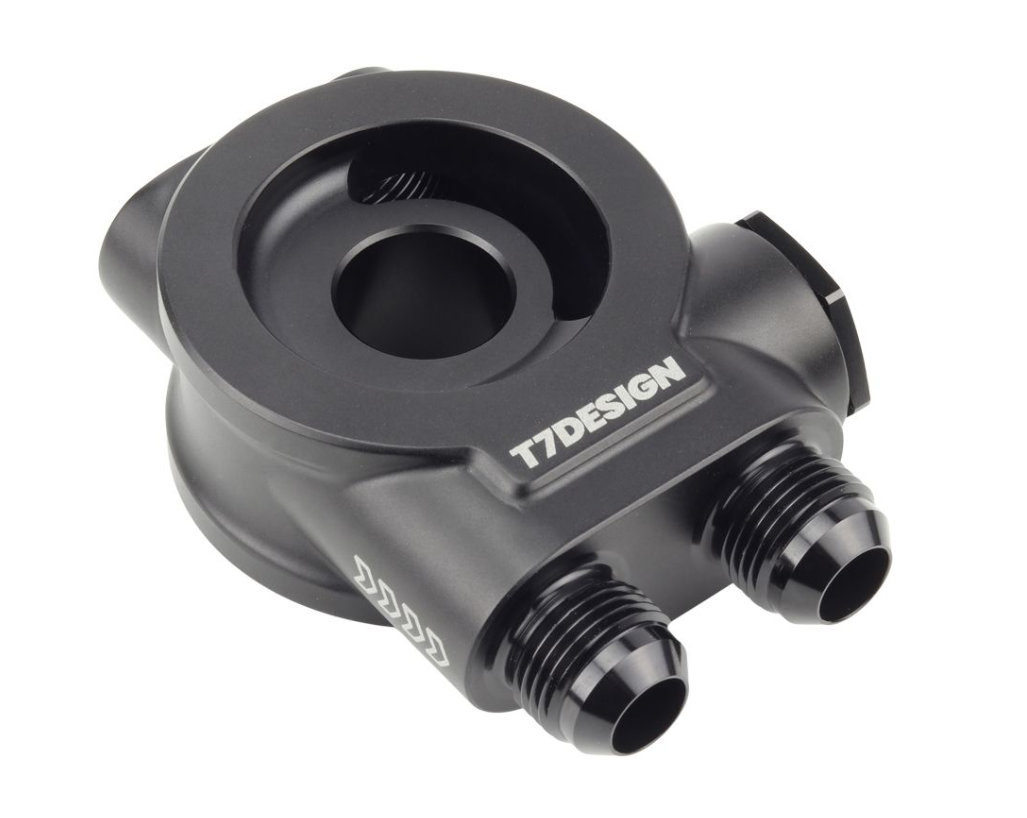

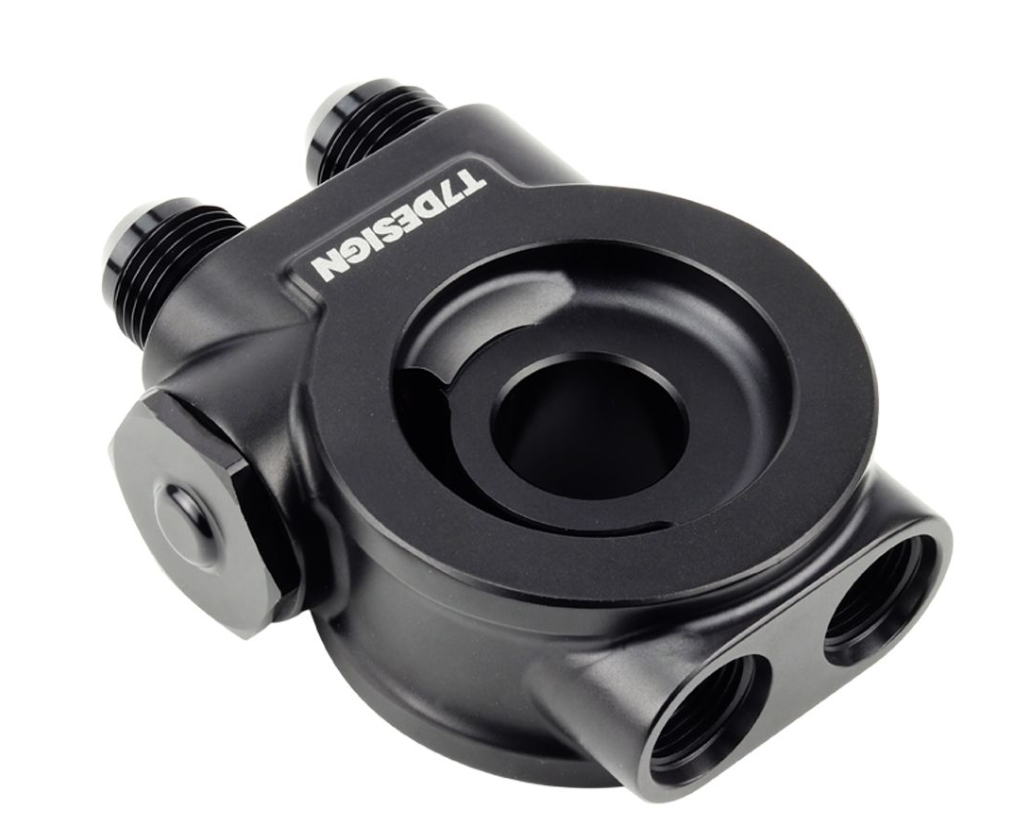

The T7Design K20/K24 Oil Cooler Sandwich plate has been designed as a direct replacement for the OEM Honda oil cooler doughnut for applications where a greater amount of oil cooling is required, it has been designed to utilise the stock centre bolt and works with the OEM Honda oil filter. We have kept thickness of the sandwich plate the same as the original oil/liquid heat exchanger to ensure the oil filter sits in the same position as stock. On the front, two threadmilled AN10 connections are machined into the adapter to run rubber or braided hose off to your oil cooler, they are also offset just the right amount from the block so that in tight spaces two 90 degree AN Fittings sit as close as possible to the timing chain cover and protrude no further than the crank pulley, this ensures there will be no clearance issues on even the tightest K-swap engine bays. On the opposite side of our sandwich plate, we have integrated two ORB08 ports to utilise our bespoke adapters for accessories such as temperature senders, pressure sensors, oil feed take off's for Turbo's or to plumb in an Accusump system.

• CNC machined from high quality billet aluminium.
• Media blasted and Hard Anodised black for superior finish and surface protection.
• Designed using a high-resolution scan of the K20 engine and OEM parts to ensure perfect fitment.
• 2x AN10 Outlets for oil in/out to cooler.
• 2x ORB08 universal ports for optional sensors or turbo feed take off's.
• Uses OEM Honda O-Ring.
• Uses OEM Honda centre bolt.
• Uses OEM Honda Filter.
• Thermostat begins opening at 82c, and is fully opened by 92c.

** If using an Accusump Oil Accumulator system the feed needs to attach to the oil cooler return half of the sandwich plate, this will be the side with the arrows facing into the centre. **

ATTENTION

• No centre bolt or oil filter is included, items are shown in images for illustration purposes only.
• This oil cooler sandwich plate is compatible with the Tensioner Cover Oil Drains but only if angled up to give clearance to the AN Fitting that attaches to the drain.
