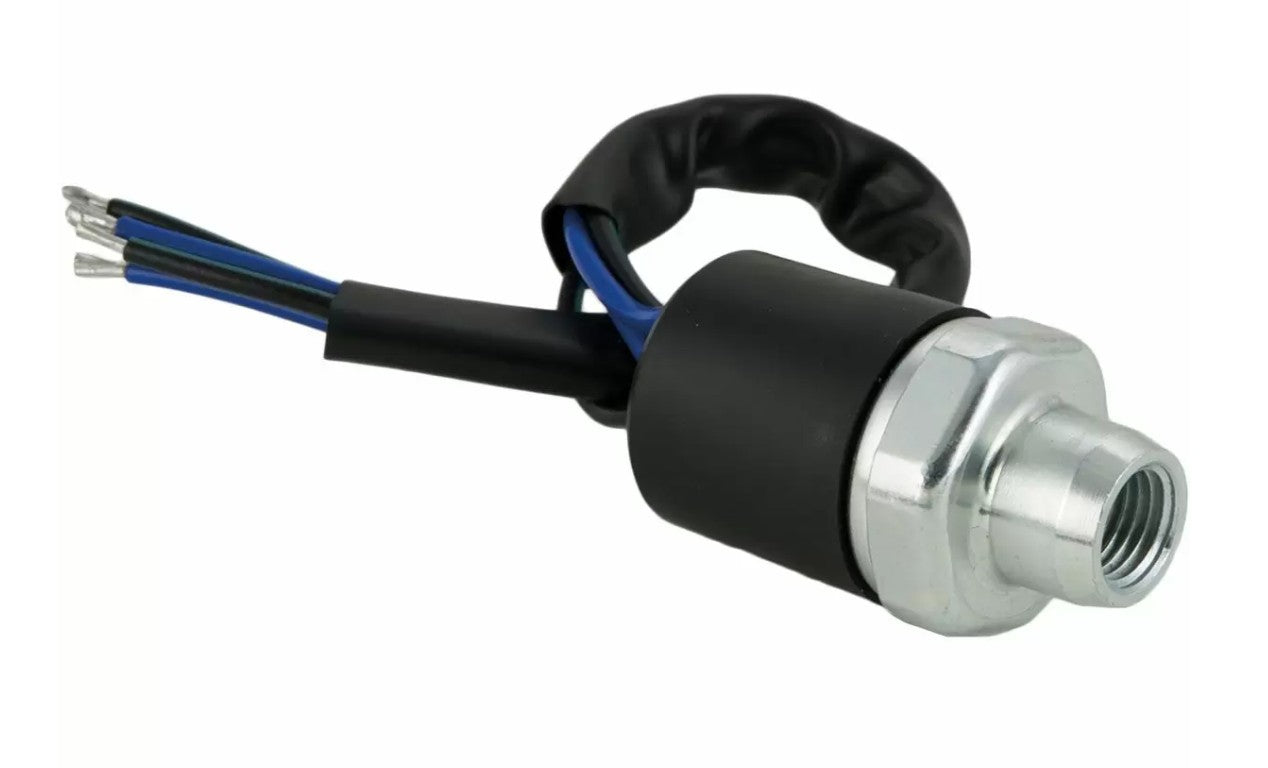

T7Design Trinary Pressure Switch LMH-971-641

T7Design Trinary Pressure Switch LMH-971-641

Regular price $60.00 AUD
Regular price Sale price $60.00 AUD
Sale Sold out

T7Design Trinary Pressure Switch LMH-971-641

A popular & reliable trinary pressure switch used on many OEM applications.

The switch is effectively a safety device that will engage or disengage components within the Air Conditioning system to prevent self-destruction. There are two types of switch, trinary and binary switch, a trinary pressure switch is effectively a binary switch with an additional fan engagement output. Under a certain pressure and the switch will disengage the compressor to prevent it running 'dry', if the pressure increases to the intermediate set point then the switch will engage the AC fan to help bring the pressure down, if the pressure continues to rise then the switch will disengage the compressor and shut the system down.

Specification Metric Imperial & Other
Pressure ON / OFF - High 22 / 28 BAR 319 / 406 PSI
Pressure ON / OFF - Medium 15.2 / 11.3 BAR 220 / 164 PSI
Pressure ON / OFF - Low 2.6 / 2.5 BAR 37.7 / 36.3 PSI
Voltage / Max Current 12v 5a, 24v 3a
Mounting Thread 7/16-20 UNF
O-Ring Material H-NBR
Manufacturer Part Number LMH-971-641
Our Part Number 9EE-5DB-9E9
Wiring Information

The Black/Green wires are for High & Low Pressure switching, and the Blue are for the Medium Pressure switching side.

Wire Colour Use
Black/Green (H/L) AC Thermostat or ON/OFF Switch
Black/Green (H/L) Compressor
Blue (M) Fan Relay (Pin 86)
Blue (M) Earth

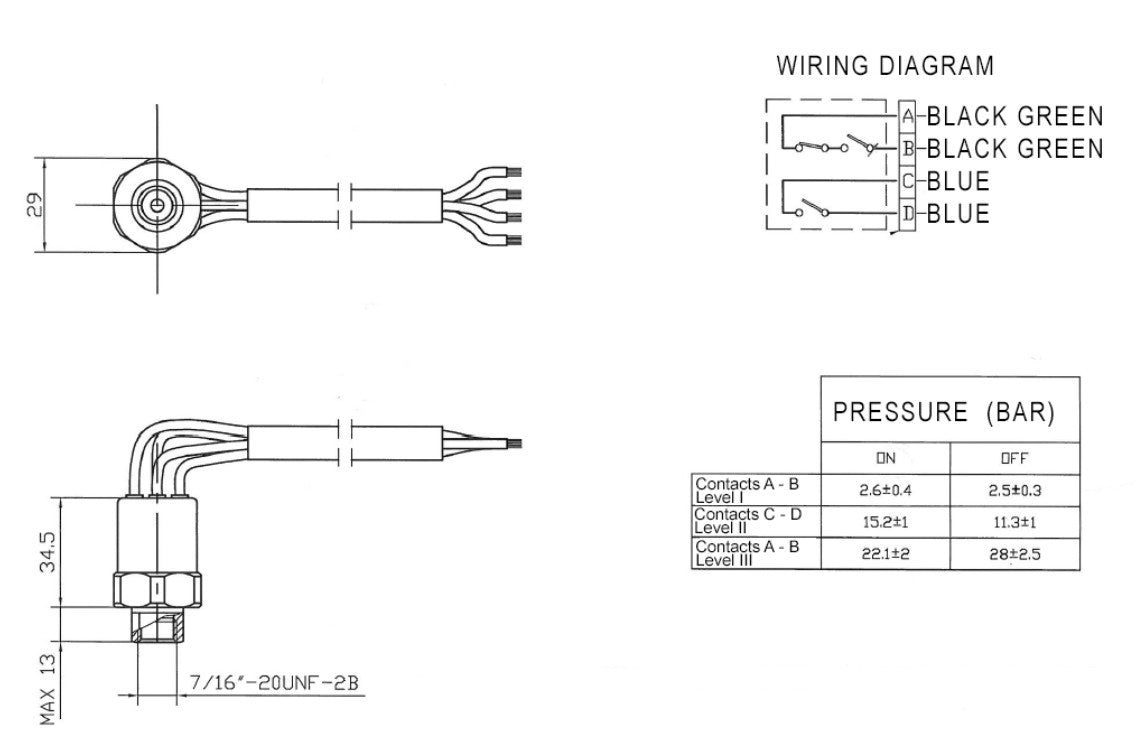

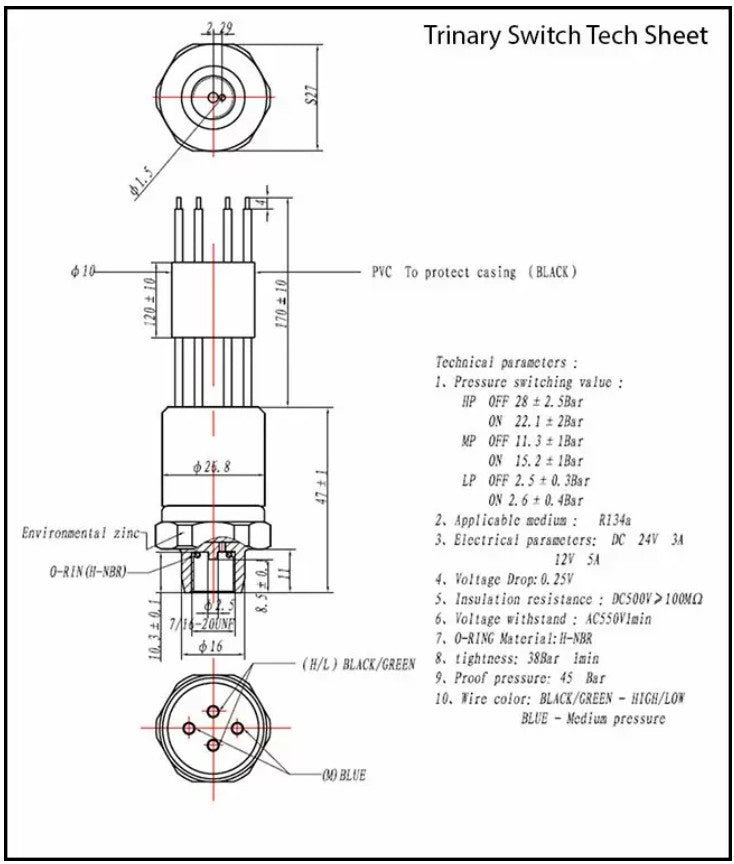

Dimensions
