Spool Up

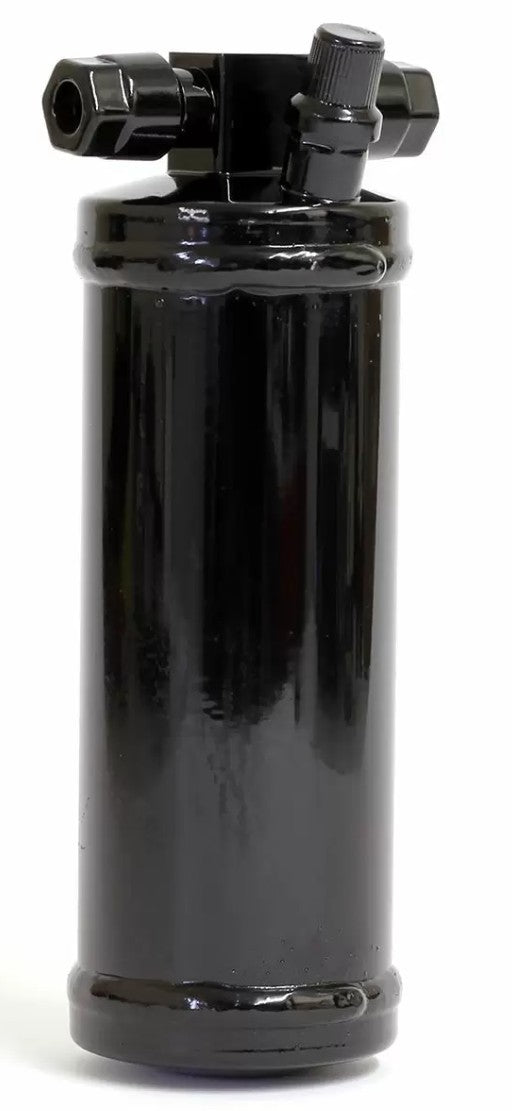

T7Design Universal Receiver / Drier Bottle Upright

T7Design Universal Receiver / Drier Bottle Upright

Regular price $50.00 AUD
Regular price Sale price $50.00 AUD
Sale Sold out

T7Design Universal Receiver Drier Bottle Upright

An upright design of receiver/drier bottle for use within mid-sized vehicles or smaller.

The receiver/drier bottle (also called filter/driers or receiver/dehydrators) are a key component within the Air Conditioning system to filter the refrigerant and to act as temporary storage for when the system is running at low demand. As well as a filter element for catching debris the bottle contains a desiccant to absorb moisture that may be within the system, water can sometimes enter during manufacturing processes, assembly or servicing via humidity in the air. Excess moisture can cause damage via corrosion or the breakdown of the oils used to lubricate the compressor.

Please note that the bottles come pre-sealed to prevent moisture ingress, please do not remove the caps until you are ready to connect the hoses and charge the system.

Specification Metric Imperial & Other
Diameter Ø 64mm Ø 2.52"
Height 210mm 8.27"
Thread Size (2x) 5/8-18 UNF
Connection Type Insert O-Ring Male
Pilot Length Long-Pilot
Switch Connection (1x) 7/16-20 UNF Flare
Other Part Numbers 6065250200.2, 42555068, 93162000
Our Part Number F5A-7D4-CBC

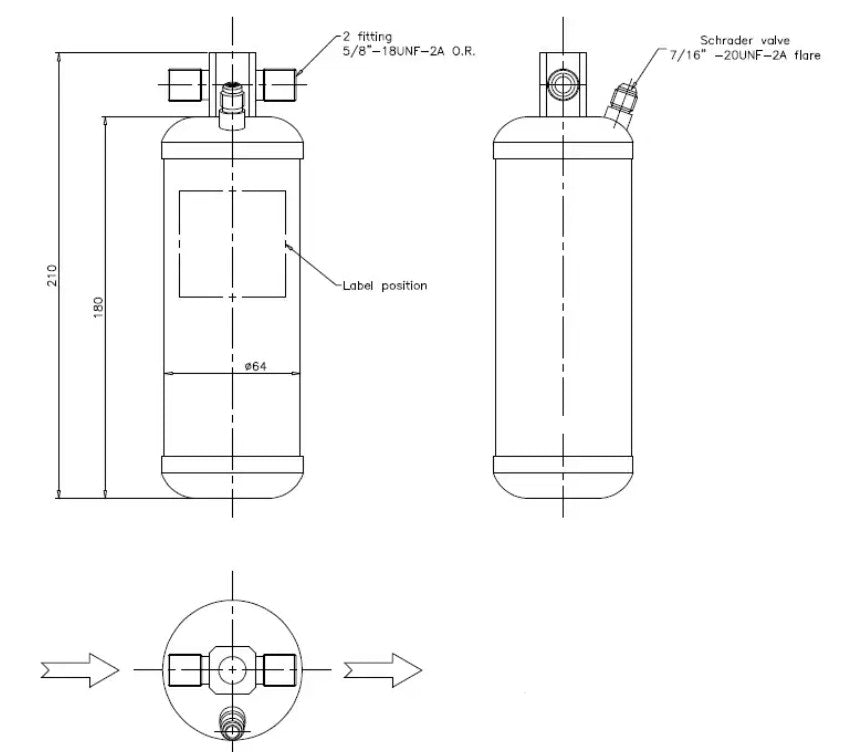

Dimensions

AC_Drier_Bottle_Upright

attention
ATTENTION
  • Please note that the bottles come pre-sealed to prevent moisture ingress, please do not remove the caps until you are ready to connect the hoses and charge the system.
  • No O-Rings supplied.
  • Please make note of flow direction arrows on diagram.
