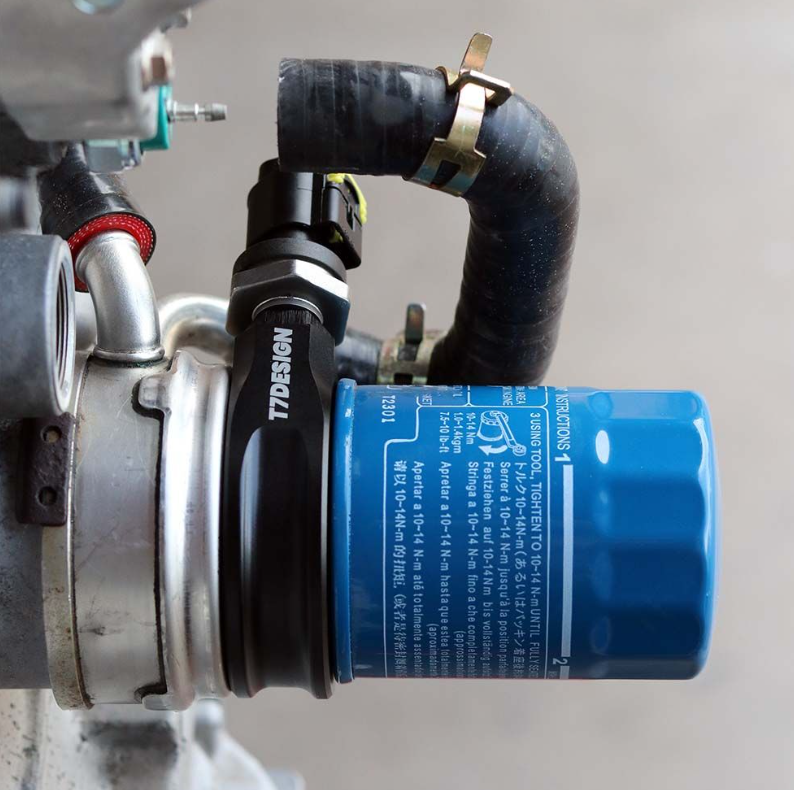

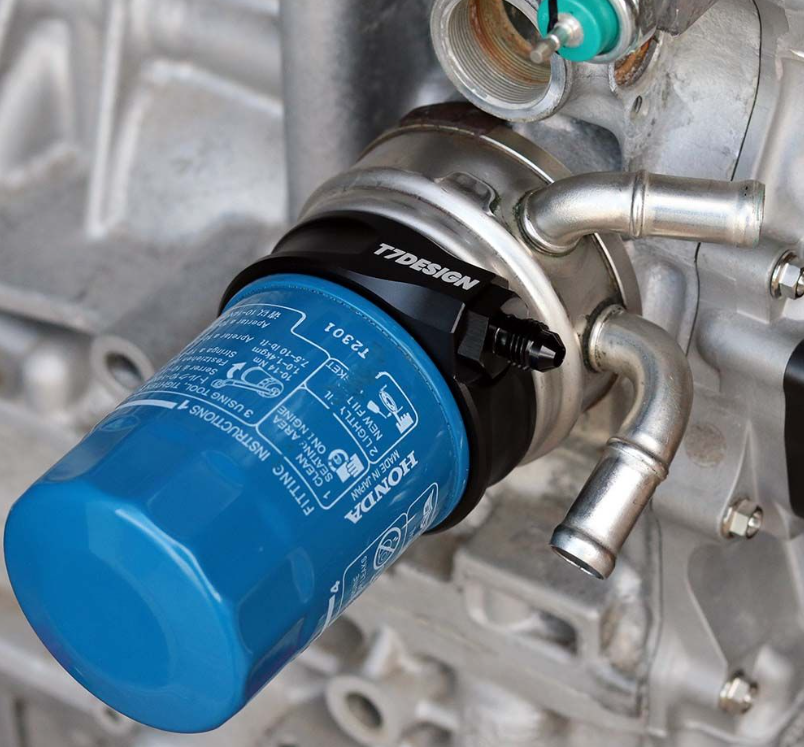

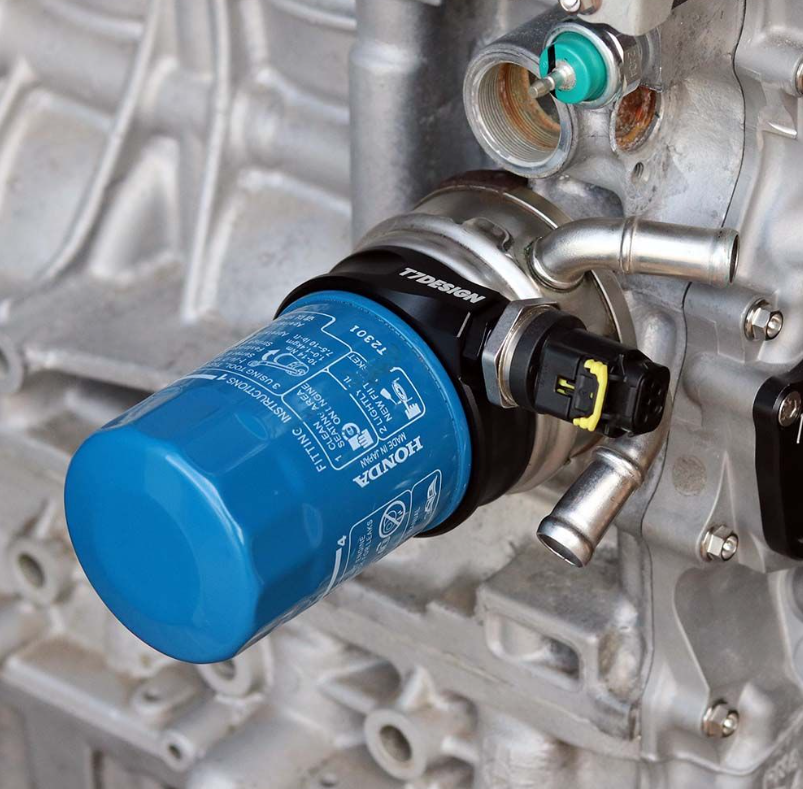

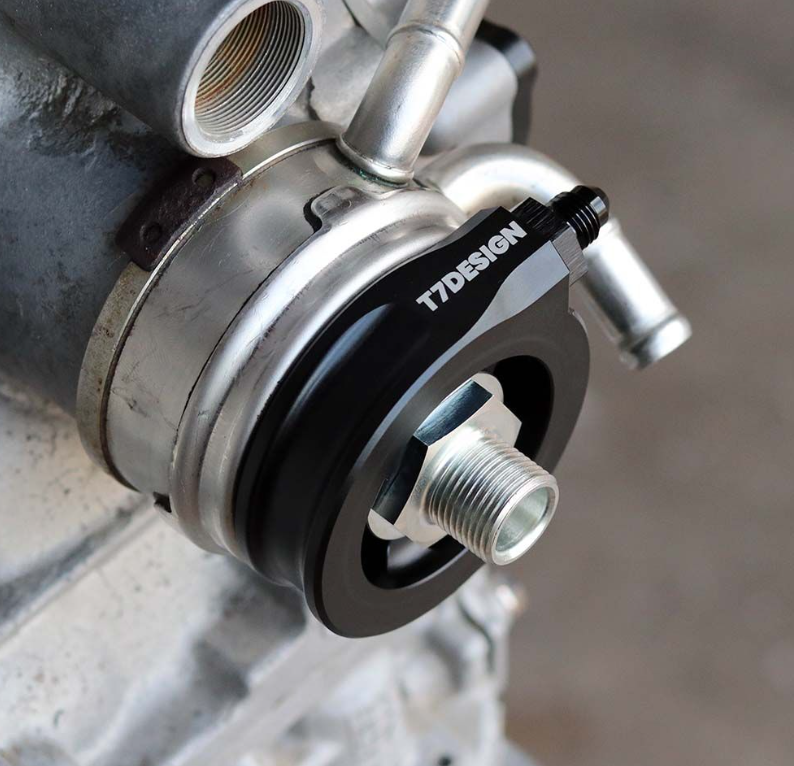

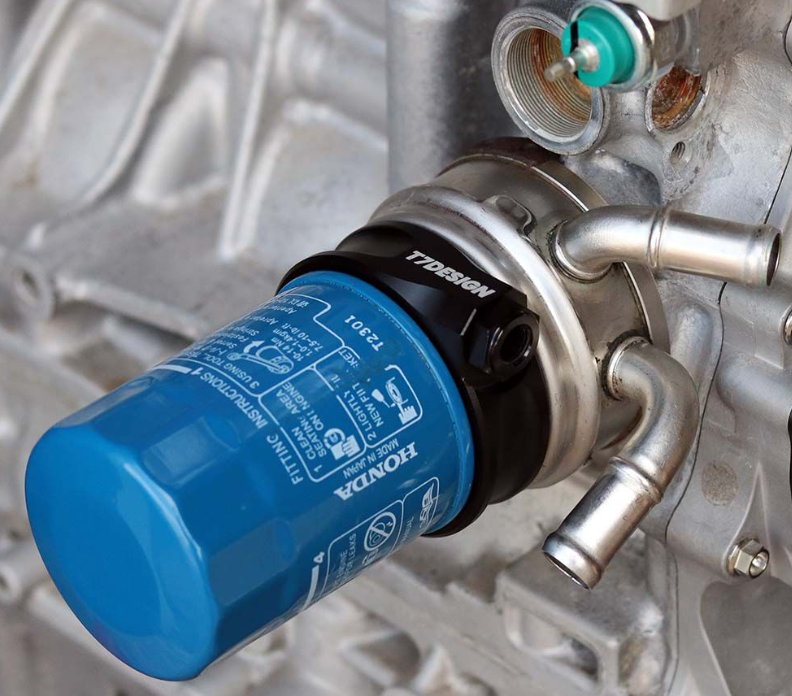

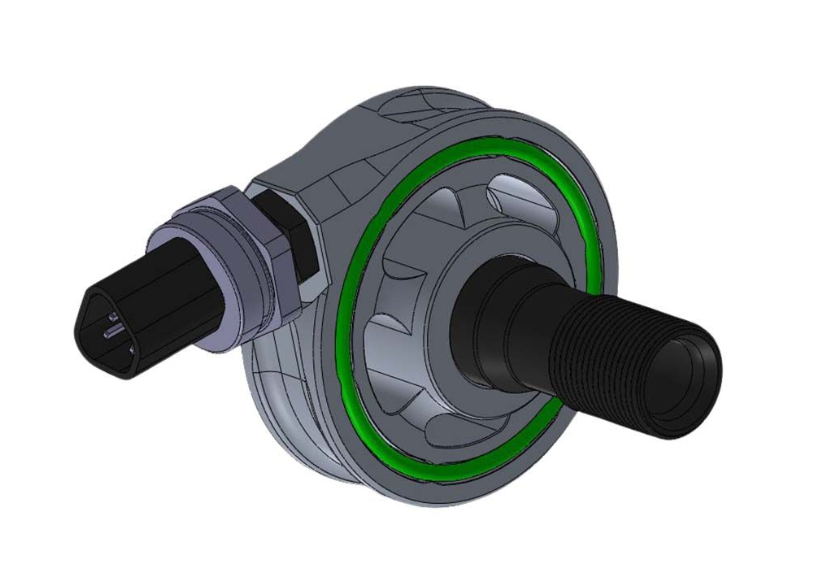

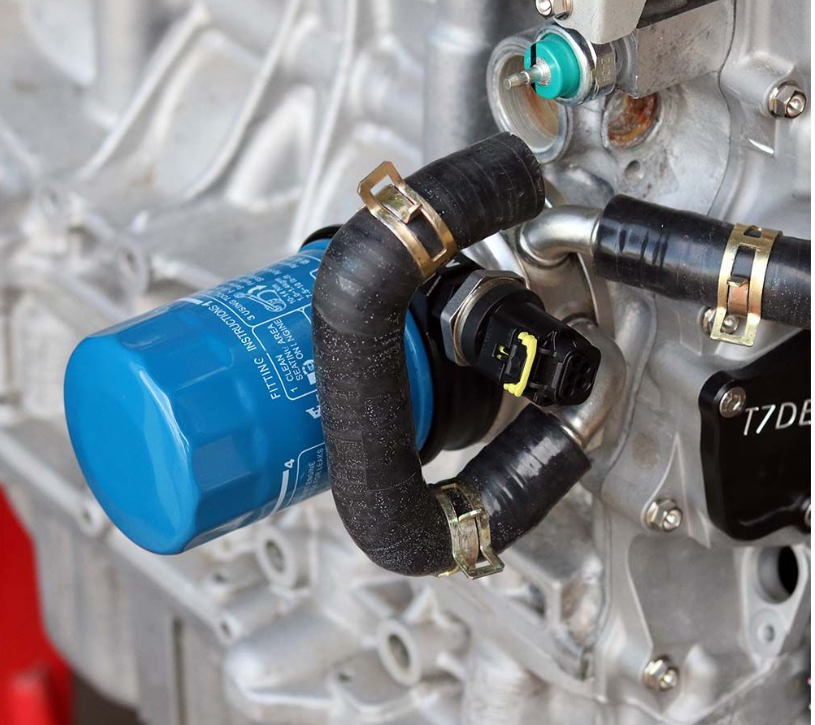

T7Design K20 K24 Sandwich Plate for Pressure Temp Sensor
T7Design K20 K24 Sandwich Plate for Pressure Temp Sensor
Honda K20 K24 Remote Oil Filter Take Off Plate Kit - Anodised Black
Introducing our new remote oil filter take off plate kit for the Honda K20 and K24 engine. This take off plate has been designed as a direct replacement for the OEM Honda oil cooler doughnut and filter for applications where packaging constraints mean servicing the vehicle is difficult and the oil filter needs to be relocated to a more accessible location. It utilises a bespoke, machined Stainless Steel centre bolt with an o-ring for sealing. Located on the front, two AN10 Male adapters are included to run rubber or braided hose off to your remote oil filter. These ports are also offset just the right amount, so that in tight spaces two 90 degree AN fittings sit as close as possible to the timing chain cover and protrude no further than the crank pulley, this ensures there will be no clearance issues on even the tightest K-swap engine bays! On the opposite side, we have integrated two ORB08 ports to utilise our bespoke adapters for accessories such as temperature senders, pressure sensors, oil feed take off's for Turbo's or to plumb in an Accusump system.
- Manufactured from high quality billet Aluminium.
- Media blasted and Hard Anodised black for superior finish and surface protection.
- Designed using a high-resolution scan of the K20 engine and OEM parts to ensure perfect fitment.
- 2x AN10 Outlets for oil in/out to Remote mount filter.
- 2x ORB08 universal ports for optional sensors or turbo feed take off's.
- Uses OEM Honda O-Ring.
- Stainless Steel Custom Centre Bolt with integrated O-ring.
Quantity | Description |
1x | K20 K24 Remote Oil Filter Take Off Plate Kit |
1x | Main O-Ring |
1x | Stainless Steel Centre Bolt |
1x | Bolt O-Ring |
2x | ORB10 to AN10 Fittings |
2x | Optional Adapters chosen during checkout |
